Zinc Alloy Entrance Door Hardware Entry Lockset outside Door Handles

Zinc Alloy Entrance Door Hardware Entry Lockset outside Door Handles
Material:
Size:
backset:
door thickness:
  • DJ2B01
  • DJ

Zinc Alloy Entrance Door Hardware Entry Lockset outside Door Handles

Welcome a trial order!

Contact us at any time



General  specification

Model No.:   DJ2B01
Application: Many kinds of wooden door and metal doors
Trim: Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China.
Mortise Lock:  Global first-creative revolutionary structure, the most components are made by stainless steel for heavy-duty purpose, three-piece latch with anti-insert and silent-closed function, big deadbolt with anti-saw function, 1,200,000 cycle-test passed.
Backset of Mortise Lock Case: Standard 2-3/4”(70mm).
Auto-locking and anti-panic function.
Easily reversible for left and right handing.
Cylinder:  American standard, the most components made by brass, processed with highly precise CNC machines, with anti-drill function and construction key function.
Standard keyway: Angle-cut-pin, each set with 5 pcs owner’s key + 1 pc construction key.

Optional keyway: Global first-creative, one side track-pin, one-side single-row-pin, top secure level, each set with 5 pcs owner’s key + 1 pc construction key.

Customized keyway: Double-row-pin
Supplying function: Entrance, Dummy, Two-open Door.
Available type of inside trim: Type A(single cylinder),  Type B(single cylinder),Type C(double cylinder),TypeD(double cylinder),TypeE(single cylinder), TypeF(double cylinder)
Door thickness:  Standard 37-46mm
Supplying finish:




 ASL - Antique Silver
ORB (US10B) - Oil Rubbed Bronze
OAC - oil Antique copper
DAC- Dim Antique Copper
 DAB- Dim Antique Brass
Package:   High quality color box.
Carton: 4 sets/carton

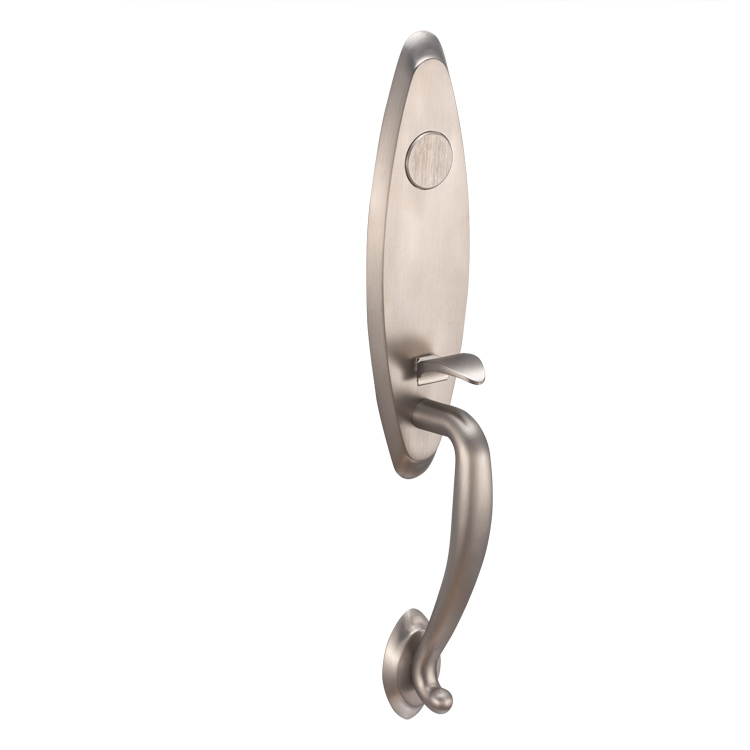

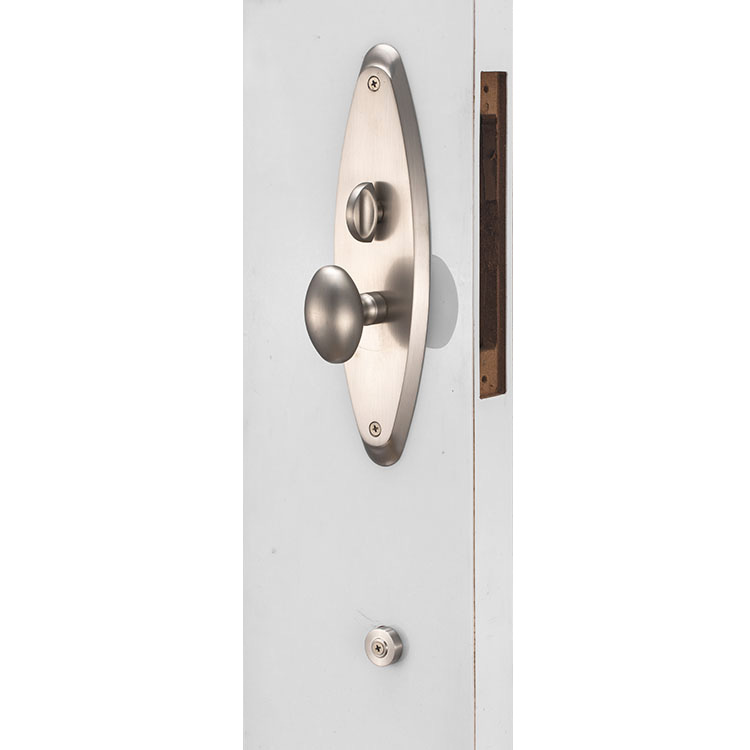

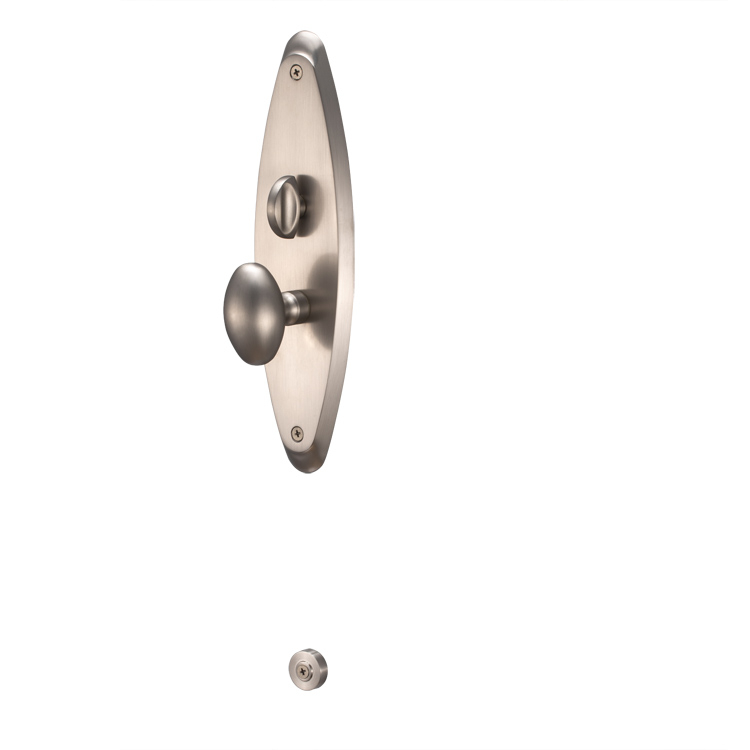

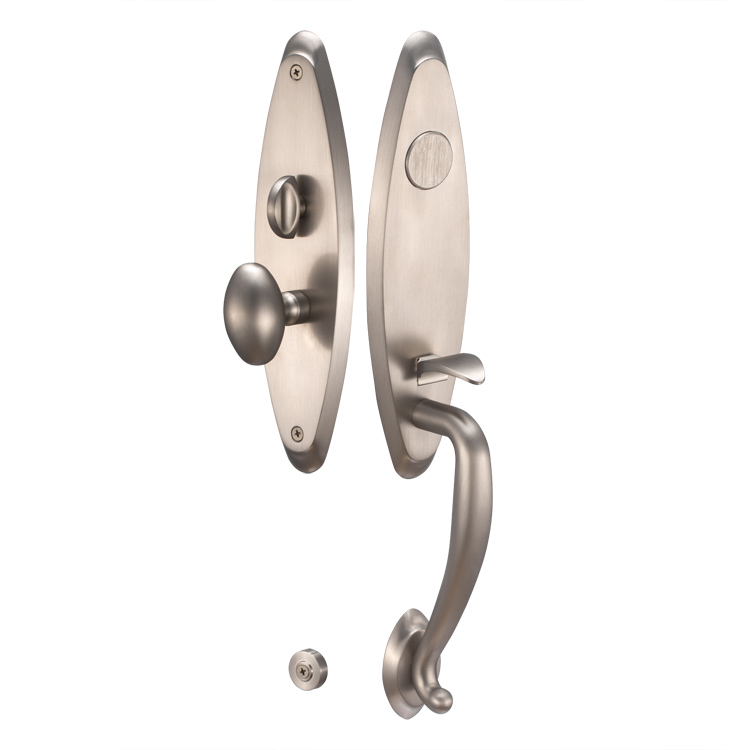

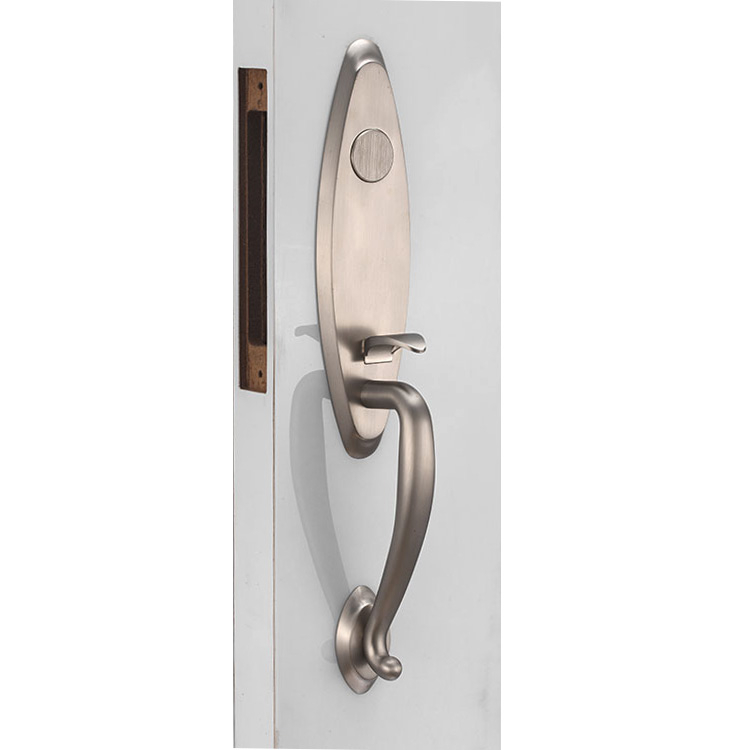

Product picture:

kwikset avalon entrykwikset tustin keyed entry leverfe695 cam 716 acc

kwikset 991 juno entry knob and single cylinder deadbolt combo pack featuring smartkey in venetian bdoor lock deadbolt combination

weiser entry door setsbaldwin entry door knobshome depot exterior door handlesets

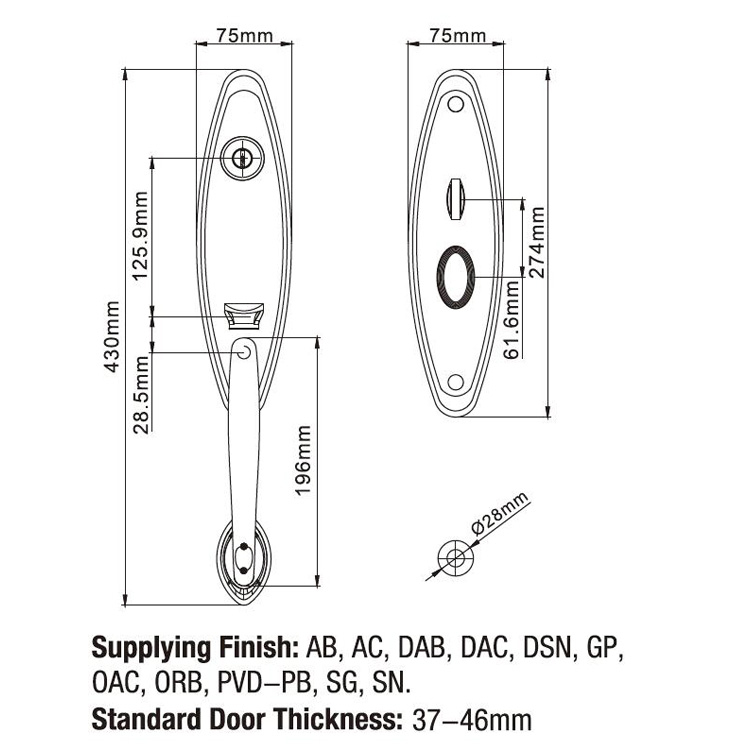

Size Picture:

century front entry handle and latitude lever

Main Specifications:

  • Apply to all kinds of wooden doors and metal doors.

  • Global  first-creative revolutionary design for lock case.

  • Mortise type.

  • ANSI/BHMA Grade 2A153.13 standard.

  • 800,00 cycles.

  • Patented prodcuts.

  • Fire-proof mechanism.

  • Anti-Drill cylinder.

  • Construction key function.

  • Anti-insert and silent-closed three-piece latch.

  • Anti-cut bolt.

  • Anti-panic.

  • Auto-locking.

  • Easily reversible for left and right handing.


ANSI/BHMA GRADE 2 Certificate by Intertek


Assembly illustration:

lowes door lock combo packs


Details description for cylinder:

entry door deadbolt

  • Anti-drill American style cylinder. With construction key function.

  • Solid brass cylinder (Brass housing,plusing,plugs and pins).

  • With American angle-cut-pin technology,each pin is different from both angle and length,ensure top security performance.

  • Processed with CNC(Computer Numeric Control) machines ,key-combination is over international standard.

  • Each cylinder with 5 pcs cupronickel owner keys,1 pc brass construction and 1 pc installation key. Angle-cut-pin keyway, each set of keys with a solo keyway code tag, make your keys not to .

  • be duplicated by others.Thickness of key is 3.0mm.



The structure of cylinder with angle-cut-pin A B keys:

schlage entry knobyale entry door locksets

Supplying keyway:

hager 3553 entry lock

Details description for lock case:

magnetic front door lock4 pack exterior door lock

  • Because of the global first-creative revolutionary design and simple structure ,our lock case contains only about 60 pieces compontents, while other American style lock cases contain at least 90 pieces components.To achieve the same function ,less parts means more simple , stable and effective, trouble-free.

  • From inside to outside ,including latch,bolt,rotors and cams,all parts are made by solid investment-casting stainless steel,much more duralbe and hinger fire-proof level. So far,in worldwide lockset industry ,only ORIENTAL executes this technique,others manufacture American style lock case with brass and steel material.

  • According to the authoritative testing reports,brass-made assemblies were damaged badly after 800,000 cycles,but investment-casting stainless steel-made assemblies remain good condition after 1,200,000 cycles.

  • Casing is sealed by revolving rivets,stronger and more elegant , the surface is  flatter, maxium avoid potential operation problems caused by wrongly drilled holes.

kwikset juno knob 980 deadbolt

  • Stainless steel for casing,strong and durable

  • Solid investment casting stainless steel 304 for bolt,hardened-steel rods inside,anti-cut.

  • Solid investment casting stainless steel 304 for three-piece latch,with anti-insert and silent-closed function, easily reversible for left and right handing,no need to disassemble the complete lock case.

  • Solid investment casting stainless steel 304 for auto locking/unlocking switch.

  • Solid stainless steel 304 or brass for forend and strike plate ,high quality metal strike box.

  • Anti-panic function available for entry set.



Specific Strike Plate For Two-Open Door (Customized fitting , not standard)

keyed entry lever

Advantage:The optional strike fills the big gap of two-open door which is caused by traditional strike.

With it ,you will never see the daylight go through from the gap when you are outside . Meanwhile ,it avoids the thieves open your two-open door by inserting latch of the lock because the gap is filled.

Therefore,the optional strike can make your tow-open door more artistic and higher security.


Show room:

signstek lock


Product Process:



kwikset front entry home depot

Multiple Cycle Test For Complete Set(Max.test 16 sets at the same time)

fe595 cam 619 geo
