Contact us at any time
| Model No.: | DJ219-B |
| Application: | Many kinds of wooden door and metal doors |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | Global first-creative revolutionary structure, the most components are made by stainless steel for heavy-duty purpose, three-piece latch with anti-insert and silent-closed function, big deadbolt with anti-saw function, 1,200,000 cycle-test passed. |

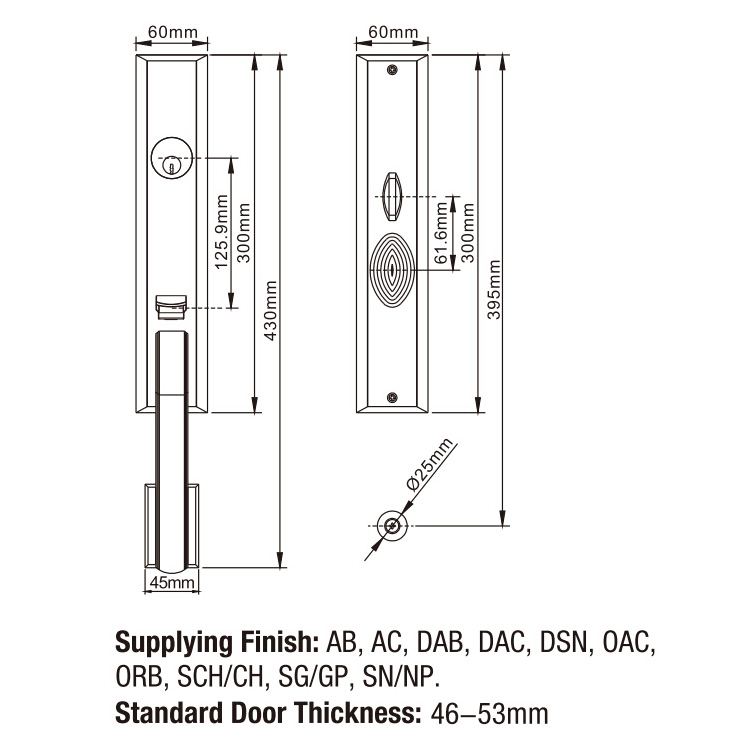

| Backset of Mortise Lock Case: Standard 2-3/4”(70mm). | |
| Auto-locking and anti-panic function. | |
| Easily reversible for left and right handing. | |
| Cylinder: | American standard, the most components made by brass, processed with highly precise CNC machines, with anti-drill function and construction key function. |
| Standard keyway: Angle-cut-pin, each set with 5 pcs owner’s key + 1 pc construction key. | |
Optional keyway: Global first-creative, one side track-pin, one-side single-row-pin, top secure level, each set with 5 pcs owner’s key + 1 pc construction key. | |
| Customized keyway: Double-row-pin | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A(single cylinder), Type B(single cylinder),Type C(double cylinder),TypeD(double cylinder),TypeE(single cylinder), TypeF(double cylinder) |
| Door thickness: | Standard 46-53mm |
| Supplying finish: | ASL - Antique Silver |
| ORB (US10B) - Oil Rubbed Bronze | |
| OAC - oil Antique copper | |
| DAC- Dim Antique Copper | |
| DAB- Dim Antique Brass | |
| Package: | High quality color box. |
| Carton: | 4 sets/carton |
Apply to all kinds of wooden doors and metal doors.
Global first-creative revolutionary design for lock case.
Mortise type.
ANSI/BHMA Grade 2A153.13 standard.
800,00 cycles.
Patented prodcuts.
Fire-proof mechanism.
Anti-Drill cylinder.
Construction key function.
Anti-insert and silent-closed three-piece latch.
Anti-cut bolt.
Anti-panic.
Auto-locking.
Easily reversible for left and right handing.
Anti-drill American style cylinder. With construction key function.
Solid brass cylinder (Brass housing,plusing,plugs and pins).
With American angle-cut-pin technology,each pin is different from both angle and length,ensure top security performance.
Processed with CNC(Computer Numeric Control) machines ,key-combination is over international standard.
Each cylinder with 5 pcs cupronickel owner keys,1 pc brass construction and 1 pc installation key. Angle-cut-pin keyway, each set of keys with a solo keyway code tag, make your keys not to .
be duplicated by others.Thickness of key is 3.0mm.
Because of the global first-creative revolutionary design and simple structure ,our lock case contains only about 60 pieces compontents, while other American style lock cases contain at least 90 pieces components.To achieve the same function ,less parts means more simple , stable and effective, trouble-free.
From inside to outside ,including latch,bolt,rotors and cams,all parts are made by solid investment-casting stainless steel,much more duralbe and hinger fire-proof level. So far,in worldwide lockset industry ,only ORIENTAL executes this technique,others manufacture American style lock case with brass and steel material.
According to the authoritative testing reports,brass-made assemblies were damaged badly after 800,000 cycles,but investment-casting stainless steel-made assemblies remain good condition after 1,200,000 cycles.
Casing is sealed by revolving rivets,stronger and more elegant , the surface is flatter, maxium avoid potential operation problems caused by wrongly drilled holes.
Stainless steel for casing,strong and durable
Solid investment casting stainless steel 304 for bolt,hardened-steel rods inside,anti-cut.
Solid investment casting stainless steel 304 for three-piece latch,with anti-insert and silent-closed function, easily reversible for left and right handing,no need to disassemble the complete lock case.
Solid investment casting stainless steel 304 for auto locking/unlocking switch.
Solid stainless steel 304 or brass for forend and strike plate ,high quality metal strike box.
Anti-panic function available for entry set.
Advantage:The optional strike fills the big gap of two-open door which is caused by traditional strike.
With it ,you will never see the daylight go through from the gap when you are outside . Meanwhile ,it avoids the thieves open your two-open door by inserting latch of the lock because the gap is filled.
Therefore,the optional strike can make your tow-open door more artistic and higher security.
