DJF014
ORIENTAL
8301400000
zinc alloy

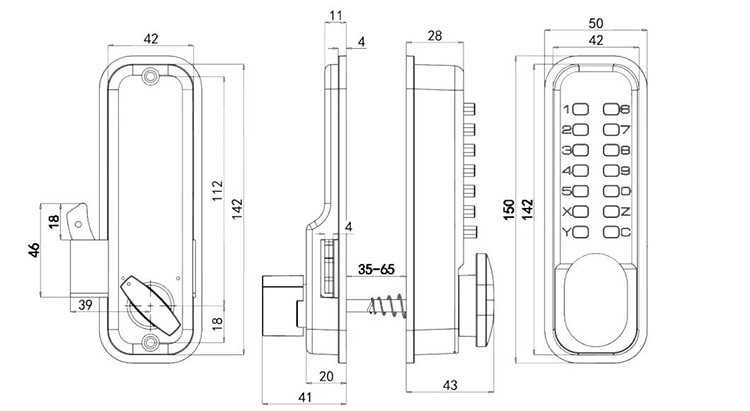

35-65mm
60mm
150x50mm
AB,AC,CP,DAB,DAC,DSN,OAC,PB,SCH,SG,SN
Welcome a trial order!
Contact us at any time!
No Power Supply!
Waterproof!
Fireproof!
| Model No.: | DJF014 |
| Application: | Many kinds of wooden door and metal doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | All main components are made by stainless steel for heavy-duty purpose, big deadbolt with anti-saw function. |
| Backset of Mortise Lock Case: Standard 2-3/8"(60mm), Customized 2-3/4"(70mm). | |
| Anti-panic function. | |
| Easily reversible for left and right handing. | |
| Cylinder: | The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function. |
| Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner's key + 1 pc construction key) | |
| Customized keyway | |
| Supplying function: | Entrance, Dummy, Two-open Door. |

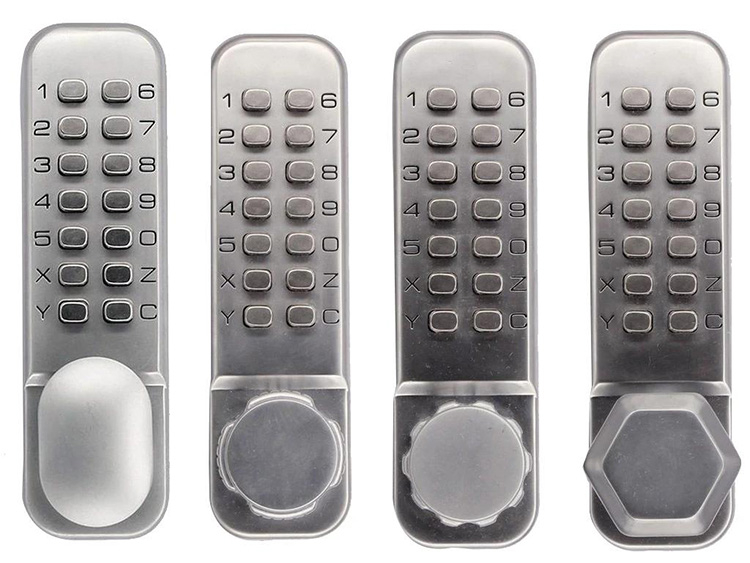

| Available type of inside trim: | Type A, Type B, Type C, Type D. |
| Door thickness: | Standard 30-65mm |

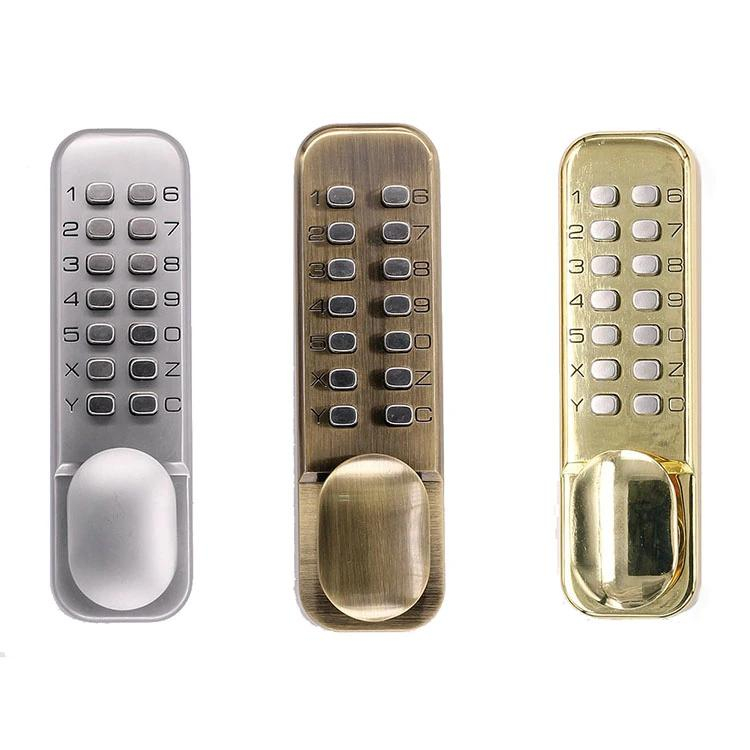

| Supplying finish: | SC - Stain Chrome |
| BK - Black | |
| AC - Antique Copper | |
| PB - Polished Brass | |
| Package: | High quality white box. |
| Carton: | 15 sets/carton |
Welcome a trial order!
Contact us at any time!
No Power Supply!
Waterproof!
Fireproof!
| Model No.: | DJF014 |
| Application: | Many kinds of wooden door and metal doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | All main components are made by stainless steel for heavy-duty purpose, big deadbolt with anti-saw function. |
| Backset of Mortise Lock Case: Standard 2-3/8"(60mm), Customized 2-3/4"(70mm). | |
| Anti-panic function. | |
| Easily reversible for left and right handing. | |
| Cylinder: | The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function. |
| Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner's key + 1 pc construction key) | |
| Customized keyway | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A, Type B, Type C, Type D. |
| Door thickness: | Standard 30-65mm |
| Supplying finish: | SC - Stain Chrome |
| BK - Black | |
| AC - Antique Copper | |
| PB - Polished Brass | |
| Package: | High quality white box. |
| Carton: | 15 sets/carton |
