Welcome a trial order!
Contact us at any time
| Model No.: | DJSD563-BK |
| Application: | Metal and wood sliding doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Lock Case: | Hook lock case, backset: 45mm. |
| Function: | Entrance, Bathroom, Passage, Flush Handle. |
| Door thickness: | Standard 35-50mm |
| Supplying finish: | SN (US 15) - Satin Nickel |
| CP - Chrome Polished | |
| AB – Dim Antique Brass | |
| SG - Satin Gold | |
| PB (US 3) - Polished Brass | |
| Package: | High quality color box. |
| Carton: | 30 sets/carton |

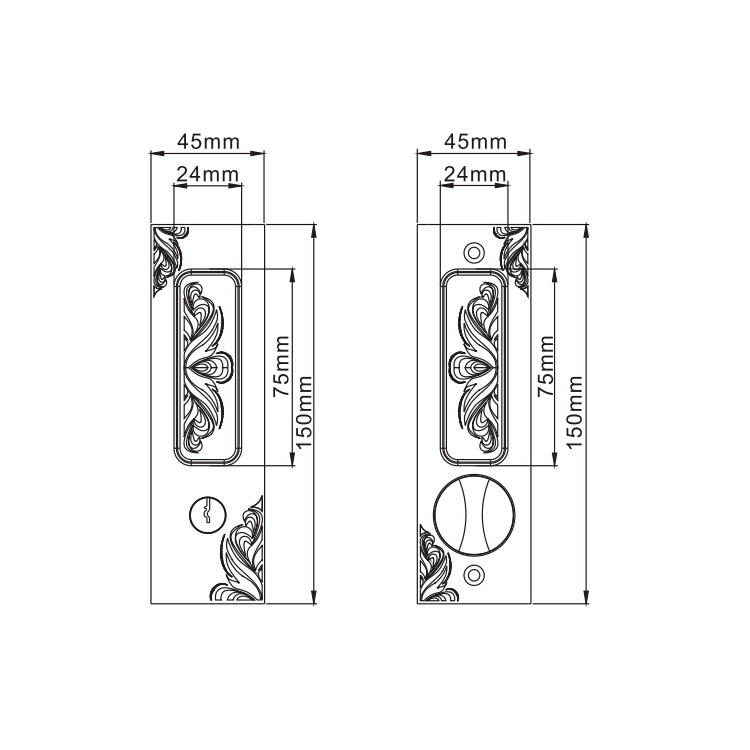

Size Picture:
Suppling Finish:ACC,AN,ASL,DAB,DAC,DSN,OAC,PB,SG.
Standard Door Thickness:35-50mm
Main Specifications:
Apply to all kinds of wooden sliding doors and metal sliding doors.
Simple mechanism,stable performance.
Artistic design , high added-value.
Abundant choices for trim and plating.
Assembly Illustration：

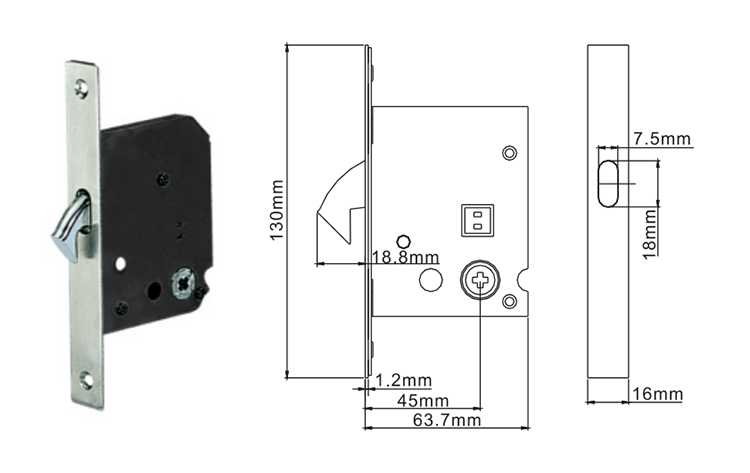

Mortise Lock Case：
High quality steel sheet for housing,firm and strong.
Solid zinc alloy die-casting for crossing rotor,stable and smooth performance.
Solid zinc alloy die-casting for compass bolt,strong and durable.
Solid stainless steel for forend and strike plate.
Cylinder:
High quality solid brass cylinder (Brass housing,plugs and pins).
Yale keyway,3 pins,processed with high precise CNC machines,running smoothly.
Each set with 3 pcs keys, all keys are made by solid brass.
Hardened process for tail-piece,stronger and more durable.
