| Model No.: | DJ669 |
| Application: | Many kinds of wooden door and metal doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Latch: | Solid brass tongue, high quality steel casing, precise mechanism inside, strong and durable. |
| Bolt: | Solid brass tongue, high quality steel casing, precise mechanism, hardened steel big rod inside for anti-saw purpose, smooth working, strong and durable. |

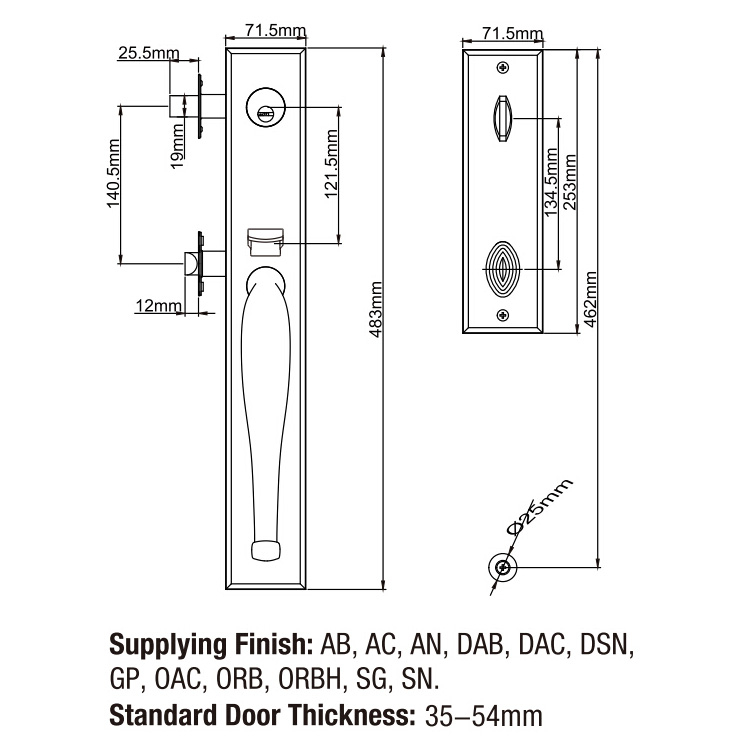

| Backset of Latch and Bolt: | Standard 2-3/8”(60mm), Optional 2-3/4”(70mm). |
| Cylinder: | The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function. |
| Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key) | |
| Customized keyway | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A, Type B, Type C, Type D, Type E, Type F. |
| Door thickness: | Standard 35-54mm |
| Supplying finish: | AB (US 5) – Antique Brass |
| SN/NP – Satin Nickel / Nickel Polished | |
| SG/GP – Satin True Gold / True Gold Polished | |
| ORB (US 10B) – Oil Rubbed Bronze | |
| SN/GP – Satin Nickel / True Gold Polished | |
| Package: | High quality color box. |
| Carton: | 6 sets/carton |
Apply to all kinds of wooden doors and metal doors.
Tubular type.
Distingulished entrance trim designs with rich styles,finish selections and levers of configurability.
Heavy-duty,10 years mechanical warranty under correct installation and normal usage.
The 3rd generation tubular mechanism with anti-saw function.
The 3rd generation high-tech cylinder with secure with secure keyway and construction key function .
Easily reversible for left and right opening doors.
Easy installation ,instruction manual included.
Deadbolt
Solid Brass for bolt tongue.
Reinforced with a big & hardened steel insert,anti-saw,higher security.
High quality steel for casing ,percise mechanism inside ,strong and stable.
Solid stainless steel for forend and strike plate.
Backset:60mm(2-3/8")-70mm(2-3/4")adjustable.
Latch
Solid brass for latch tongue.
High quality steel for casing , precise mechanism inside,strong and stable.
Solid stainless steel for forend and strike plate.
Backset:Standard:60mm(2-3/8") ,Customized:70mm(2-3/4")
Driving Rack For Latch
High quality steel turning rack & gear driving mechanism inside,enable the latch to work smoothly.
The 3rd Generation High-tech Cylinder
High-tech solid brass cylinder(Brass for housing,core/plug.pins and nut).
Machined by precise CNC(Computer Numeric Control) equipments according to the most strict QA standard.
Keyway:Double-Row-Pin technology,10 pins,pin-combinations are much more than internation key function available:Each cylinder with 5 pcs OWNER keys + 1 pc CONSTRUCTION keys,all keys are made by solid brass ,thickness 2.5mm.
Hardened process for tail-piece,stronger and more durable.
