Fire Rated Sash Lock CE Marked To En12209 DIN18251 Entrance Mortise Lock Usd in Public Place

Fire Rated Sash Lock CE Marked To En12209 DIN18251 Entrance Mortise Lock Usd in Public Place
  • MLE009
  • ORIENTAL
  • SUS304
  • 50/55/60/65/70/80
  • 235X24/22/20mm
  • SSS

Fire Rated Sash Lock CE Marked To En12209 DIN18251 Entrance Mortise Lock Usd in Public Place

Welcome a trial order!

Contact us at any time



Product Description



Details
Type
mortise lock
Brand name
ECH
Application
door
Model NO.
MLE009
Size
55/60/65X72mm
Handle Material
stainless steel 304
Transportation
1. Small order: DHL/UPS/Fedex/EMS/TNT
2. Larger order: by sea or by air.
3. Choose the best and convenient way for your need.
Mortise Lock
Manufactured according to Italian quality standard, operated by size 8x8mm follower.
Backsetof Mortise Lock Case: 70mm.
Cylinder
brass ,N/V, operated by Spindle.
Finish
SSS or to order
Design
1, Customized logos are highly welcomed.
2, We have our own design team
3, OEM
Advantages
1. Unique, original appearance
2. High quality and first-hand price hardware
3. Perfect design, refresing and eye-catching appearance.
4. Both OEM and ODM services are highly welcomed.



1. Distance:72mm,Backset:55/60/65mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Front Plate:SUS304,Size:240*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

5. Spindle:SUS304,Hole size:8*8mm

6. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209): 3x910G-BC020
Fire resistance test (standard EN1634-1): 260 minutes (steel door),wooden door 111 minutes (wooden door)

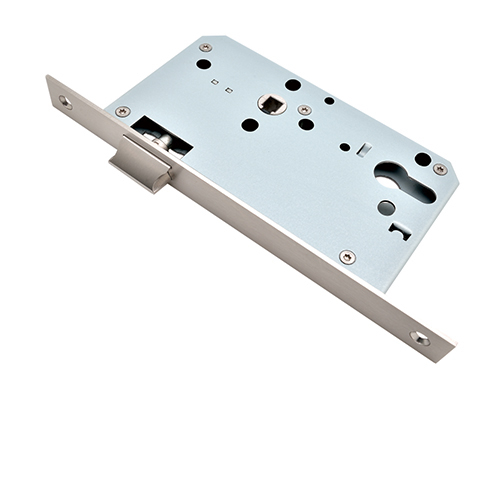

Detailed Photos


best mortise locks

sliding glass door mortise lock replacementmortise handlemortise deadboltyale mortice lockmortice door lockantique mortise lockschlage mortise cylinder

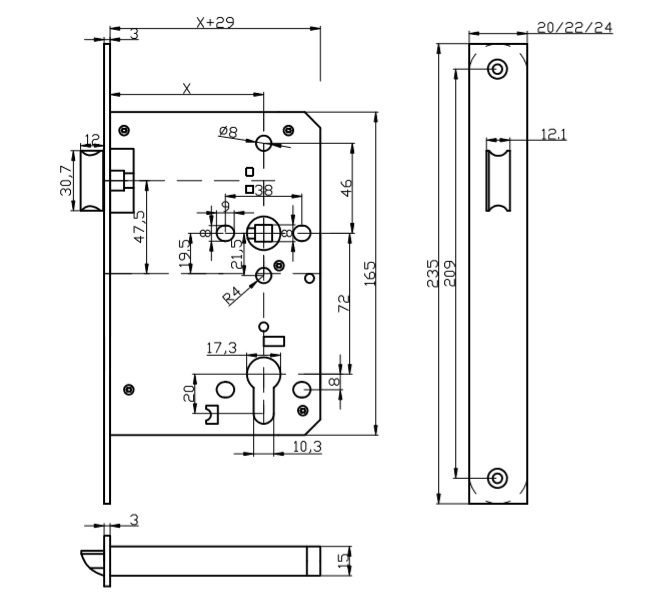

Product Size Picture:

antique door lock
