DJ133
ORIENTAL
Solid Zinc Alloy
40-60mm
60mm
388.5X60mm
AB,AC,DAB,DAC,DSN,GP,OAC,SCH/CH,SG/GP,SN/GP,SN/NP
Welcome a trial order!
Contact us at any time
| Model No.: | DJ133 |
| Application: | Many kinds of wooden door and metal doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | All main components are made by stainless steel for heavy-duty purpose, big deadbolt with anti-saw function. |
| Backset of Mortise Lock Case: Standard 2-3/8”(60mm), Customized 2-3/4”(70mm). | |
| Anti-panic function. | |
| Easily reversible for left and right handing. | |
| Cylinder: | The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function. |
| Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key) | |
| Customized keyway | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A, Type B, Type C, Type D. |
| Door thickness: | Standard 40-60mm |
| Supplying finish: | AB (US 5) – Antique Brass |
| SN/NP – Satin Nickel / Nickel Polished | |
| SN/GP – Satin Nickel / True Gold Polished | |
| SG/GP – Satin True Gold / True Gold Polished | |
| Package: | High quality color box. |
| Carton: | 6 sets/carton |

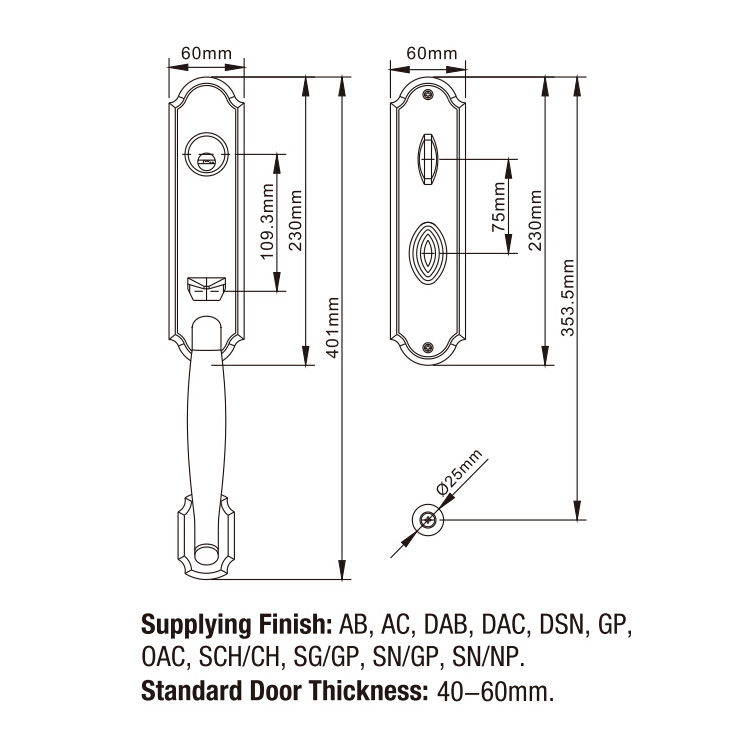

Size Picture：
Assembly illustration:
Rotor:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy.
Cam:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy.
Casing:High class imported EGI(electric galvanized)steel,higher grade fingerprint resistant,thickness 1.5mm.
Latch:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy,easily reversible for left and right handing.
Deadbolt:Solid stainless steel 304, reinforced with two hardened steel inserts,anti-saw,anti-rust,stronger and more durable than brass and zinc alloy,offering maximum protection and security.
Forend(thickness 3.0mm)/Strike plate (thickness 1.5mm):Solid stainless steel 304 or brass.
High-tech solid brass cylinder(Brass for housing,core/plug,pins and cut).
Machined by pricise CNC (Computer Number Control) equipments according to the most strict QA standard.
Keyway:Double-Row-Pin technology,10 pins,pin-combinations are much more than international standard ,extremely security.
Construction key function available:Each cylinder with 5 pcs OWNER keys + 1 pc CONSTRUCTION key ,all keys are made by solid brass ,thickness 2.5mm.
Hardened process for tail-piece,stronger and more durable.
Supplying keyway
Standard
Plastic Box For Owner Keys
The owner keys are sealed inside the plastic box,you could not get the owner keys unless make the box broken ,offering maximum security.
