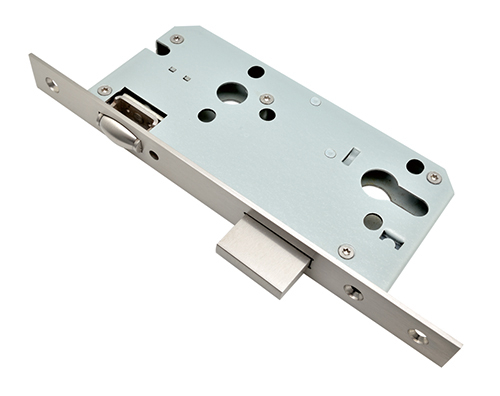

| Details | |
| Type | mortise lock |
| Brand name | ECH |
| Application | door |
| Model NO. | MLE021 |
| Size | 50/55x85mm |
| Handle Material | stainless steel 304 |
| Transportation | 1. Small order: DHL/UPS/Fedex/EMS/TNT 2. Larger order: by sea or by air. 3. Choose the best and convenient way for your need. |
| Mortise Lock | Manufactured according to Italian quality standard, operated by size 8x8mm follower. Backsetof Mortise Lock Case: 70mm. |
| Cylinder | brass ,N/V, operated by Spindle. |
| Finish | SSS or to order |
| Design | 1, Customized logos are highly welcomed. 2, We have our own design team 3, OEM |
| Advantages | 1. Unique, original appearance 2. High quality and first-hand price hardware 3. Perfect design, refresing and eye-catching appearance. 4. Both OEM and ODM services are highly welcomed. |

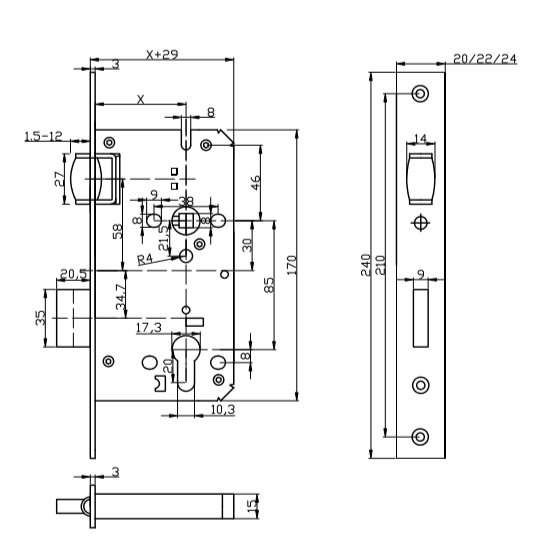

1. Distance:85mm,Backset:50/55mm
2. Lock shell:zinc steel SECC,thickness:1.5mm
3. Dead bolt:SUS304(Durability: 50,000 test cycles),two lock
4. Collision bead bolt:SUS304
5. Front Plate:SUS304,Size:235*24mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm
6. Performance in line with European standard EN12209
