DAC Zinc Alloy Solid American Standard ANSI UL Listed Fire Rate Security Mortise Door Lock for Hotel

DAC Zinc Alloy Solid American Standard ANSI UL Listed Fire Rate Security Mortise Door Lock for Hotel
Material:
door thickness:
backset:
Size:
Finish:
Availability:
  • DJ105

  • ORIENTAL

DAC Zinc Alloy Solid  American Standard ANSI UL Listed Fire Rate Security Mortise Door Lock for Hotel

Welcome a trial order!

Contact us at any time



General  specification

Model No.:   DJ105
Application: Many kinds of wooden door and metal doors.
Trim: Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China.
Mortise Lock:  All main components are made by stainless steel for heavy-duty purpose, big deadbolt with anti-saw function.
Backset of Mortise Lock Case: Standard 2-3/8”(60mm), Customized 2-3/4”(70mm).
Anti-panic function.
Easily reversible for left and right handing.
Cylinder:  The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function.
Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key)
Customized keyway
Supplying function: Entrance, Dummy, Two-open Door.
Available type of inside trim: Type A, Type B, Type C, Type D.
Door thickness:  Standard 38-55mm
Supplying finish:  AB (US 5) – Antique Brass
SN/NP – Satin Nickel / Nickel Polished
SN/GP – Satin Nickel / True Gold Polished
SG/GP  Satin True Gold / True Gold Polished
Package:   High quality color box.
Carton: 6 sets/carton

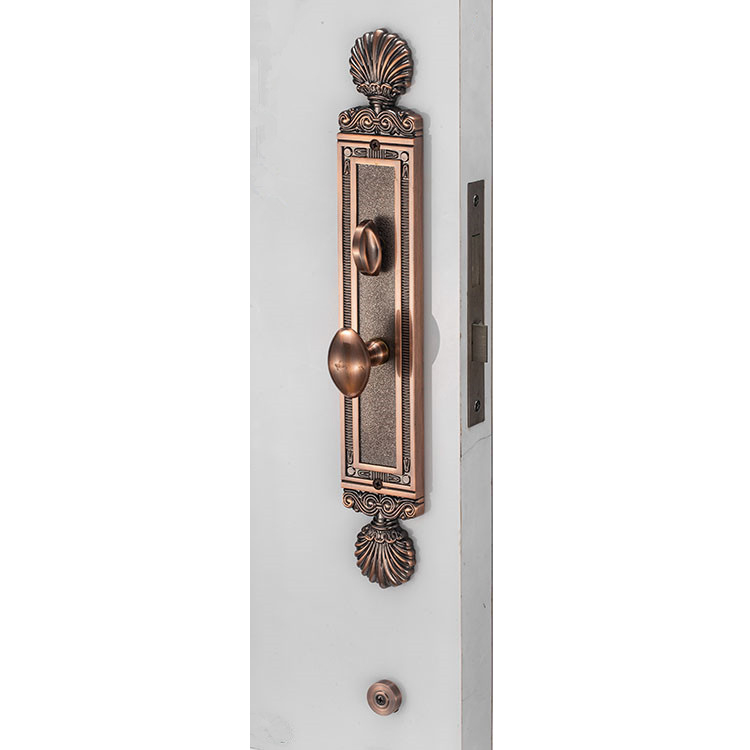

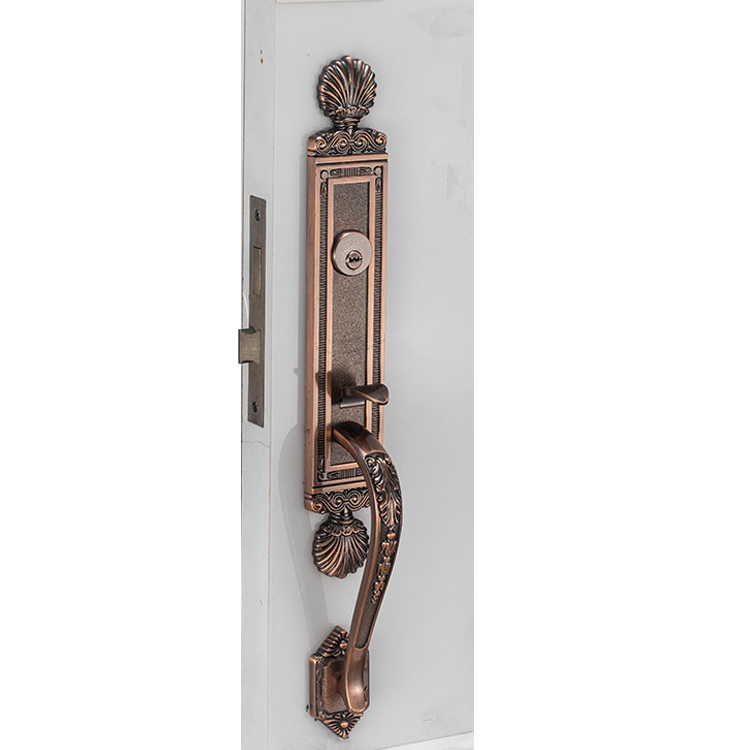

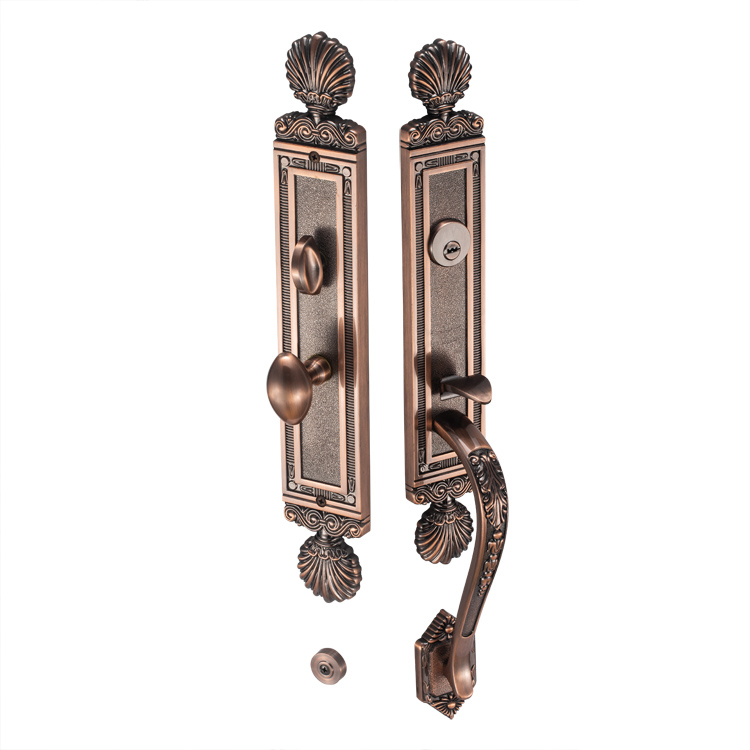

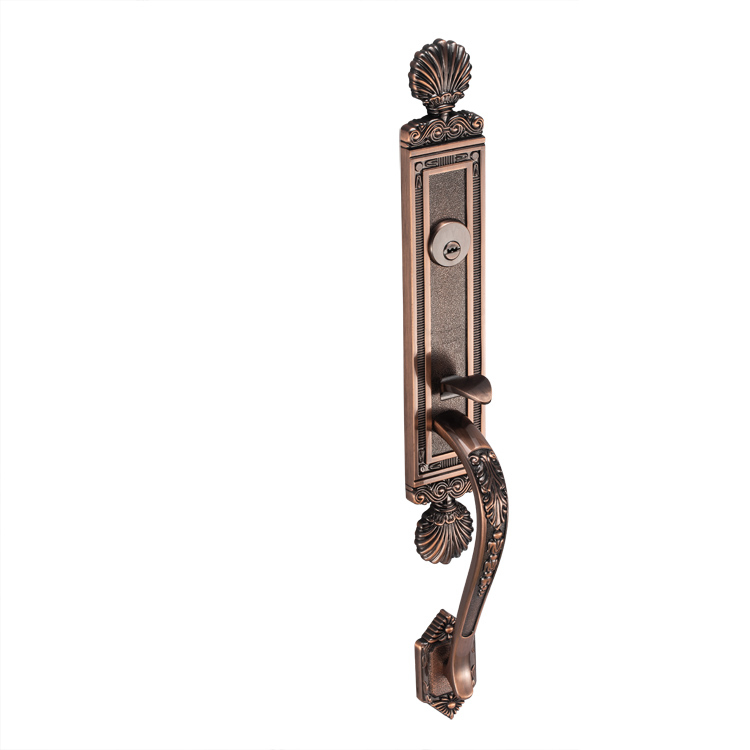

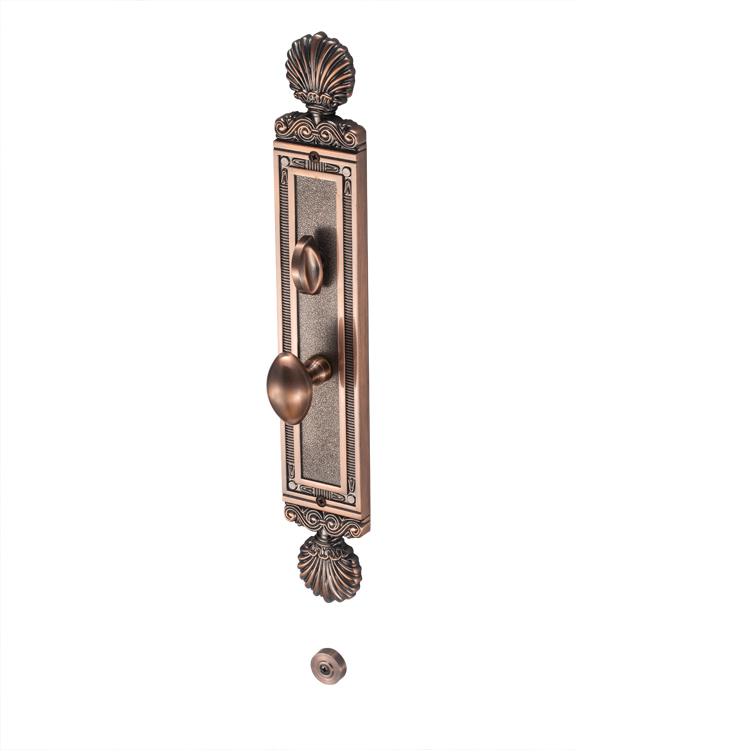

Product picture:

Door Lock for HotelSecurity Mortise Door LockUL Listed Fire Rate door lock

American Standard ANSI door lockDAC Zinc Alloy Solid door lock

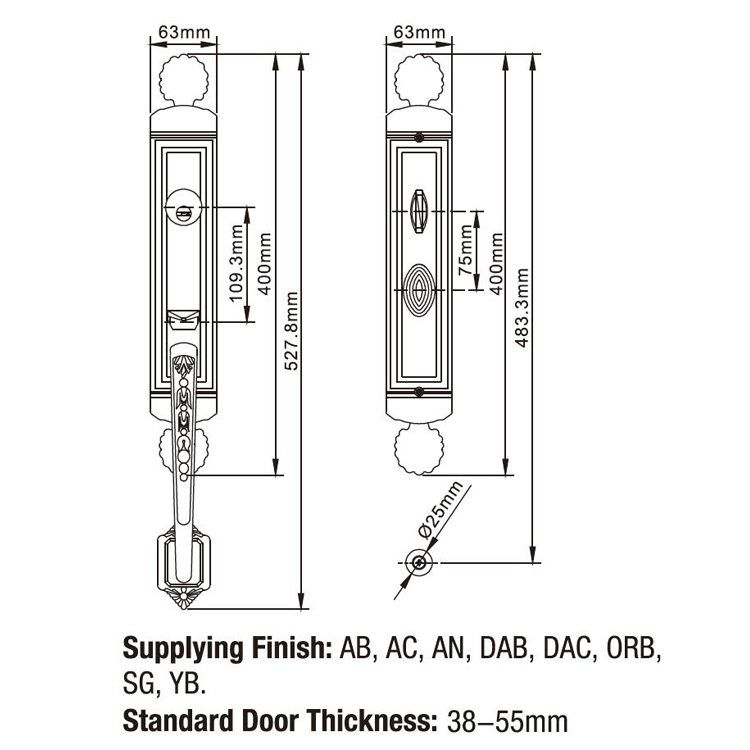

Size Picture:

salto door entry

Assembly illustration:

residential entry door locksets

The 5th Generation Mortise Lock Case:

door knob and deadbolt combo

  • Rotor:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy.

  • Cam:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy.

  • Casing:High class imported EGI(electric galvanized)steel,higher grade fingerprint resistant,thickness 1.5mm.

  • Latch:Solid investment-casting stainless steel 304,anti-rust,stronger and more durable than brass and zinc alloy,easily reversible for left and right handing.

  • Deadbolt:Solid stainless steel 304, reinforced with two hardened steel inserts,anti-saw,anti-rust,stronger and more durable than brass and zinc alloy,offering maximum protection and security.

  • Forend(thickness 3.0mm)/Strike plate (thickness 1.5mm):Solid stainless steel 304 or brass.


The 3rd Generation high-tech cylinder:

brass front door handle with lock

  • High-tech solid brass cylinder(Brass for housing,core/plug,pins and cut).

  • Machined by pricise CNC (Computer Number Control) equipments according to the most strict QA standard.

  • Keyway:Double-Row-Pin technology,10 pins,pin-combinations are much more than international standard ,extremely security.

  • Construction key function available:Each cylinder with pcs OWNER keys + 1 pc CONSTRUCTION key ,all keys are made by solid brass ,thickness 2.5mm.

  • Hardened process for tail-piece,stronger and more durable.


The Structure Of 1 Series Cylinder:

high tech front door locks

Supplying keyway

Standard

two point locking double cylinder handleset

Double-row-pin With Construction Key Function:

home depot exterior locksets

Plastic Box For Owner Keys

one way entry door locks

The owner keys are sealed inside the plastic box,you could not get the owner keys unless make the box broken ,offering maximum security.


Show room:

strong front door locks


Product Process:



weiser entry door locks

Multiple Cycle Test For Complete Set(Max.test 16 sets at the same time)

lowes kwikset balboa
