| Material: | |
|---|---|
| Size: | |
| backset: | |
DJ702
ORIENTAL
Welcome a trial order!
Contact us at any time
| Model No.: | DJ702 |
| Application: | Many kinds of wooden door and metal doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Latch: | Solid brass tongue, high quality steel casing, precise mechanism inside, strong and durable. |
| Bolt: | Solid brass tongue, high quality steel casing, precise mechanism, hardened steel big rod inside for anti-saw purpose, smooth working, strong and durable. |

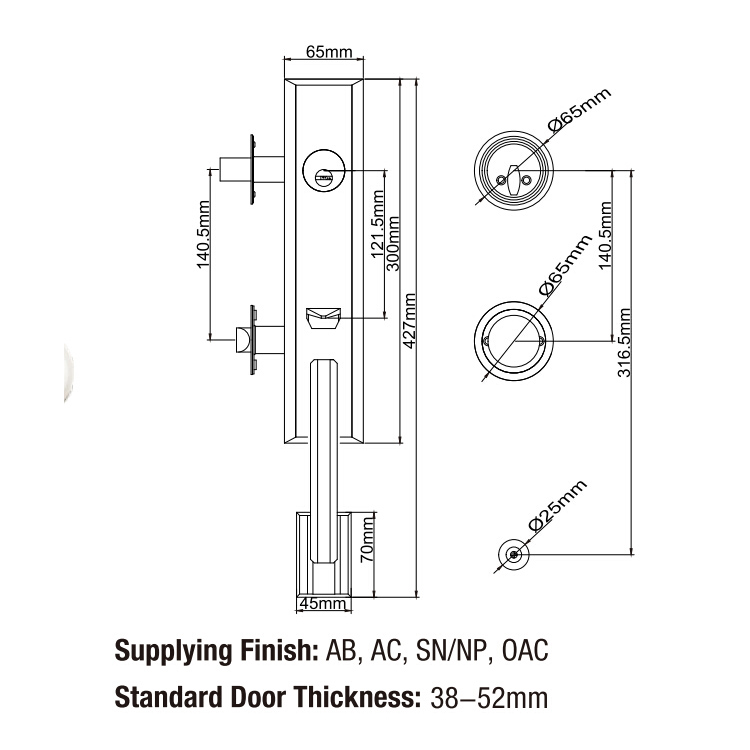

| Backset of Latch and Bolt: | Standard 2-3/8”(60mm), Optional 2-3/4”(70mm). |
| Cylinder: | The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function. |
| Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key) | |
| Customized keyway | |
| Supplying function: | Entrance, Dummy, Two-open Door. |
| Available type of inside trim: | Type A, Type B, Type C, Type D, Type E, Type F. |
| Door thickness: | Standard 38-52mm |
| Supplying finish: | AB (US 5) – Antique Brass |
| SN/NP – Satin Nickel / Nickel Polished | |
| SG/GP – Satin True Gold / True Gold Polished | |
| ORB (US 10B) – Oil Rubbed Bronze | |
| SN/GP – Satin Nickel / True Gold Polished | |
| Package: | High quality color box. |
| Carton: | 6 sets/carton |
Artistic design,overturning the old fashion of similar products,make your etrance doors more personalized and beautiful.
Apply to all kinds of wooden doors and metal doors.
Tubular Type.
Anti-cut for bolt for securer purpose.
Easily installation and reversible for left & right handing.
Latch tongue is made by zinc alloy die-casting.
High quality components inside to ensure good mechanism.
Backset:60mm(2-3/8")-70mm(2-3/4")adjustable.
Latch
Bolt tongue is made by zinc alloy die-casting.
Big hardened steel rod inside for anti-saw and securer purpose.
High quality components inside to ensure good mechanism.
Backset:Standard:60mm(2-3/8") ,Customized:70mm(2-3/4")
Cylinder
Zinc alloy housing+Solid brass plug(Core)+Brass pins.
Normal key(Thickness 2.2mm) or Computer key (Thickness 2.5mm) for option.
Number of Pin combination (Key Cut) is over interational standard ,make your home secure.
