American Style AB Solid Zinc Alloy And Stainless Steel Security Door Hardware Handle Locks

American Style AB Solid Zinc Alloy And Stainless Steel Security Door Hardware Handle Locks
Material:
Size:
backset:
Finish:
  • DJ706
  • ORIENTAL
  • solid zinc alloy + stainless steel 304/201
  • 38-52mm
  • 60-70mm
  • 475.3x76.5mm
  • AB,AC,SN,OAC

American Style AB Solid Zinc Alloy And Stainless Steel Security Door Hardware Handle Locks

Welcome a trial order!

Contact us at any time



General  specification


Model No.:   DJ706
Application: Many kinds of wooden door and metal doors.
Trim: Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China.
Latch:   Solid brass tongue, high quality steel casing, precise mechanism inside, strong and durable.
Bolt: Solid brass tongue, high quality steel casing, precise mechanism, hardened steel big rod inside for anti-saw purpose, smooth working, strong and durable.
Backset of Latch and Bolt: Standard 2-3/8”(60mm), Optional 2-3/4”(70mm).
Cylinder:  The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function.
Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key)
Customized keyway
Supplying function: Entrance, Dummy, Two-open Door.
Available type of inside trim: Type A, Type B, Type C, Type D, Type E, Type F.
Door thickness:  Standard 38-52mm
Supplying finish:  AB (US 5) – Antique Brass
SN/NP – Satin Nickel / Nickel Polished
SG/GP – Satin True Gold / True Gold Polished
ORB (US 10B) – Oil Rubbed Bronze
SN/GP – Satin Nickel / True Gold Polished
Package:   High quality color box.
Carton: 6 sets/carton

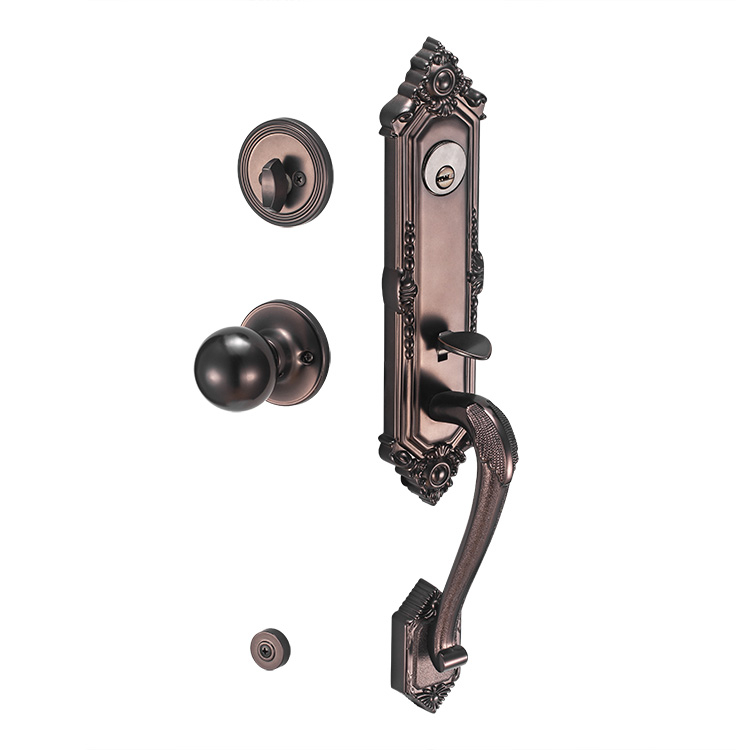

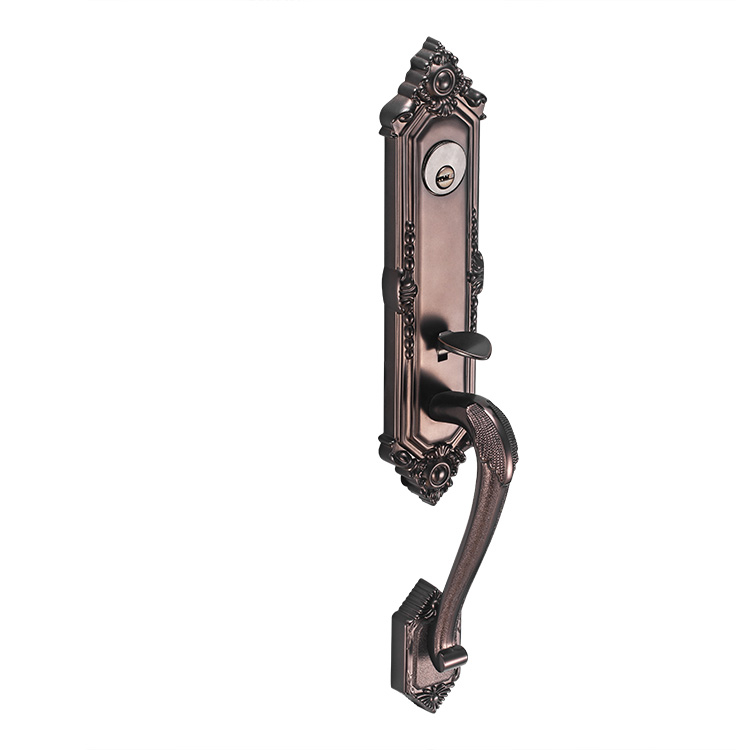

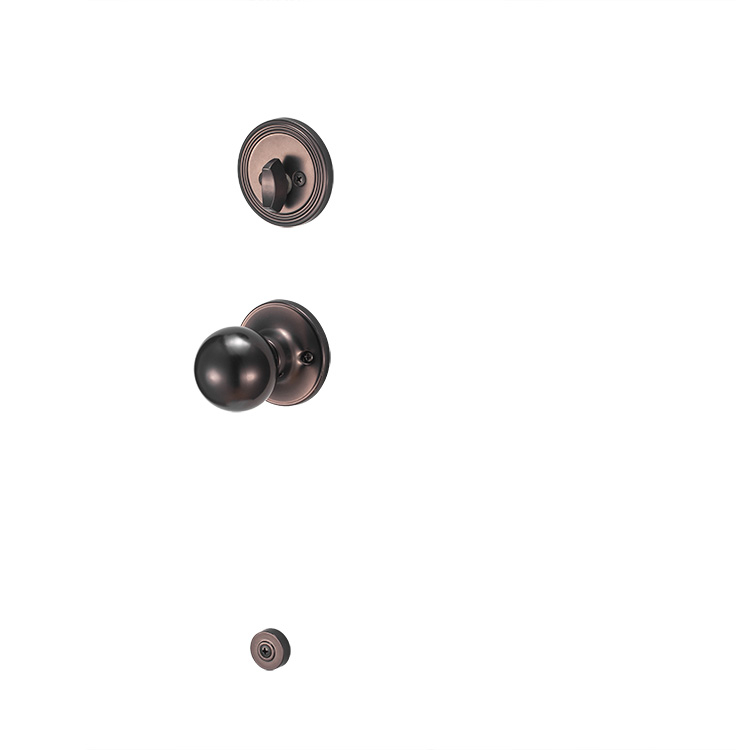

Product picture:

entry door handles and locksdeadbolt and handle setexterior door handles with locksfront door latch lockdoor handles with key locks

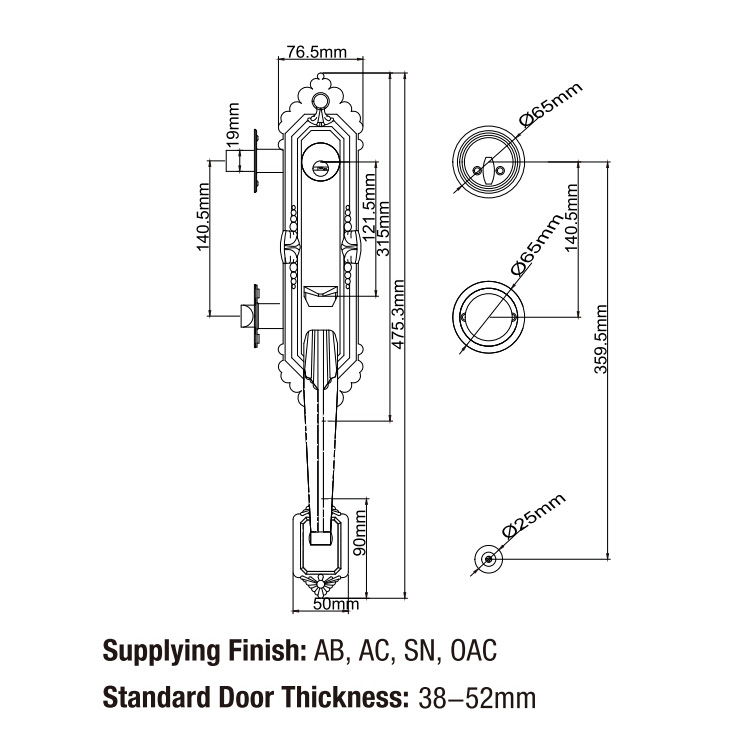

Size Picture:

deadbolt knob

Main Specifications:

  • Artistic design,overturning the old fashion of similar products,make your etrance doors more personalized and beautiful.

  • Apply to all kinds of wooden doors and metal doors.

  • Tubular Type.

  • Anti-cut for bolt for securer purpose.

  • Easily installation and reversible for left & right handing.

Assembly illustration:

hardware door handles


Latch

  • Latch tongue is made by zinc alloy die-casting.

  • High quality components inside to ensure good mechanism.

  • Backset:60mm(2-3/8")-70mm(2-3/4")adjustable.

front door locking systems

Latch

  • Bolt tongue is made by zinc alloy die-casting.

  • Big hardened steel rod inside for anti-saw and securer purpose.

  • High quality components inside to ensure good mechanism.

  • Backset:Standard:60mm(2-3/8")   ,Customized:70mm(2-3/4")



security door locks for homes

Cylinder

  • Zinc alloy housing+Solid brass plug(Core)+Brass pins.

  • Normal key(Thickness 2.2mm) or Computer key (Thickness 2.5mm) for option.

  • Number of Pin combination (Key Cut) is over interational standard ,make your home secure.

high security door locks

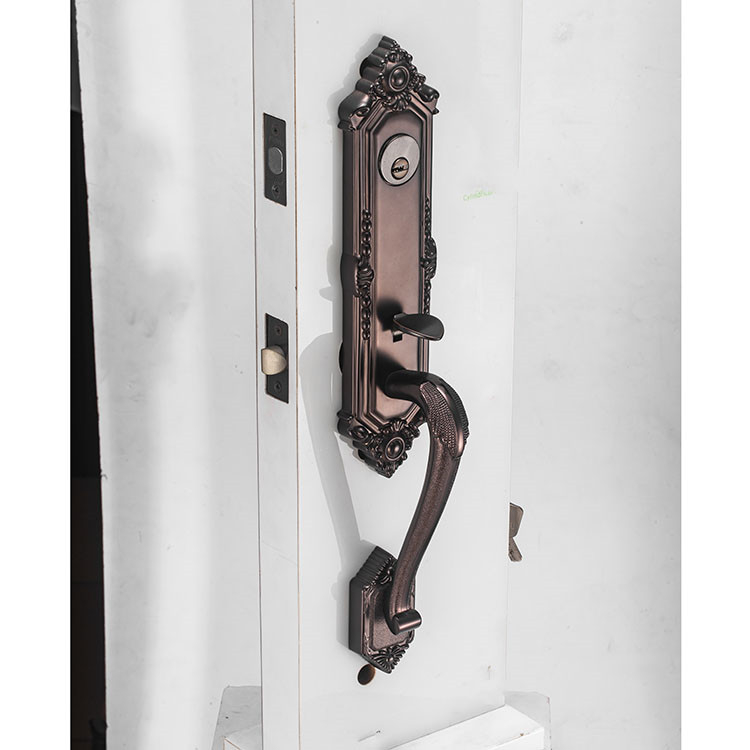

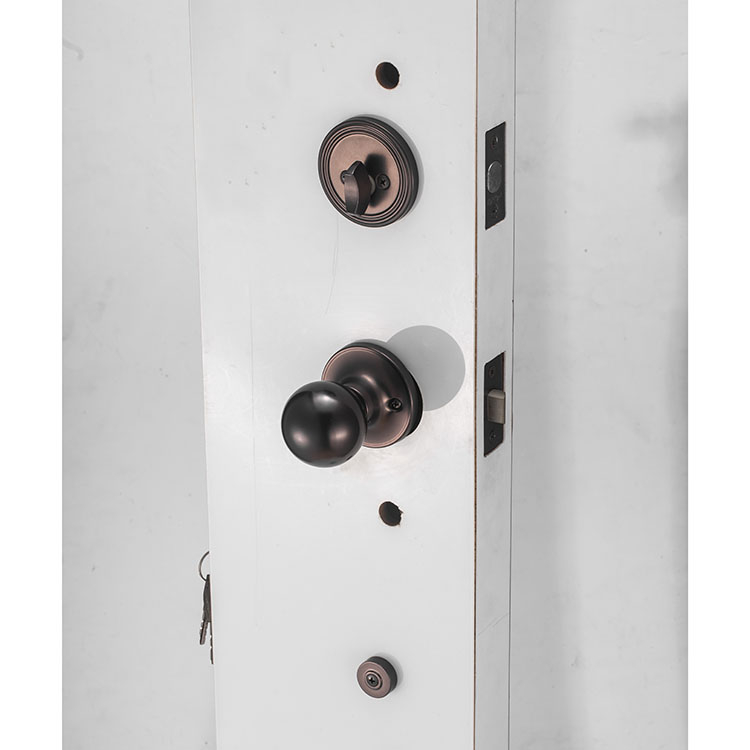

Show room:

door latch handle


Product Process:



deadbolt door handle

Multiple Cycle Test For Complete Set(Max.test 16 sets at the same time)

security door locks and handles
