ASL Solid Zinc Alloy Keyless Best Bathroom Exterior Door Hardware Passage Lockset

ASL Solid Zinc Alloy Keyless Best Bathroom Exterior Door Hardware Passage Lockset
  • DJ620
  • ORIENTAL
  • Solid Zinc Alloy
  • 35-54mm
  • 60/70mm
  • 429x65mm
  • AB,AC,DAB,DAC,DSN,GP,OAC,SCH/CH,SG/GP,SN/GP,SN/NP

ASL Solid Zinc Alloy Keyless Best Bathroom Exterior Door Hardware Passage Lockset

Welcome a trial order!

Contact us at any time



General  specification


Model No.:   DJ620
Application: Many kinds of wooden door and metal doors.
Trim: Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China.
Latch:   Solid brass tongue, high quality steel casing, precise mechanism inside, strong and durable.
Bolt: Solid brass tongue, high quality steel casing, precise mechanism, hardened steel big rod inside for anti-saw purpose, smooth working, strong and durable.
Backset of Latch and Bolt: Standard 2-3/8”(60mm), Optional 2-3/4”(70mm).
Cylinder:  The most components are made by brass, processed with highly precise CNC machines, hardened tail-piece for durable purpose, with construction key function.
Standard keyway:Double-row-pin, 10 pins, higher secure level. (Each set with 5 pcs owner’s key + 1 pc construction key)
Customized keyway
Supplying function: Entrance, Dummy, Two-open Door.
Available type of inside trim: Type A, Type B, Type C, Type D, Type E, Type F.
Door thickness:  Standard 35-54mm
Supplying finish:  AB (US 5) – Antique Brass
SN/NP – Satin Nickel / Nickel Polished
SG/GP – Satin True Gold / True Gold Polished
ORB (US 10B) – Oil Rubbed Bronze
SN/GP – Satin Nickel / True Gold Polished
Package:   High quality color box.
Carton: 6 sets/carton

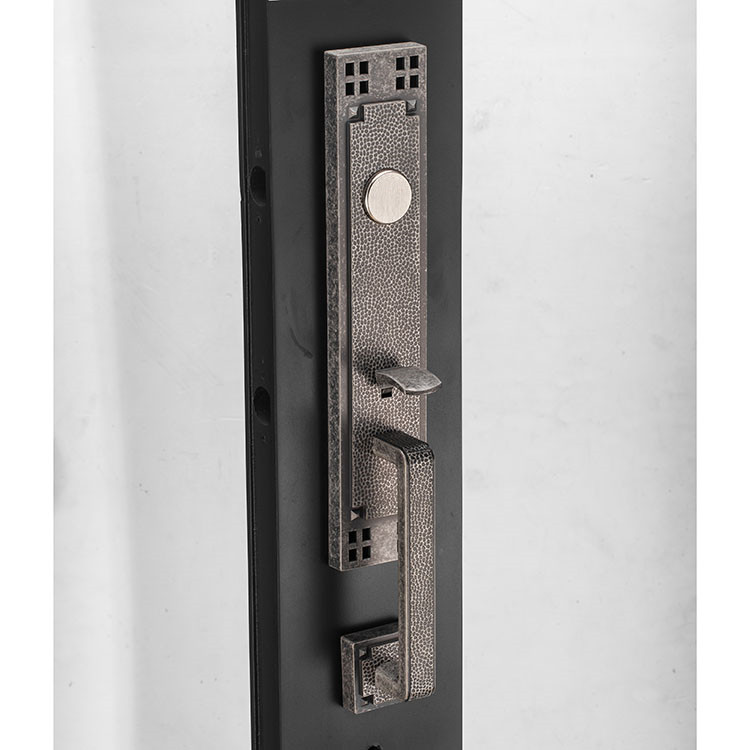

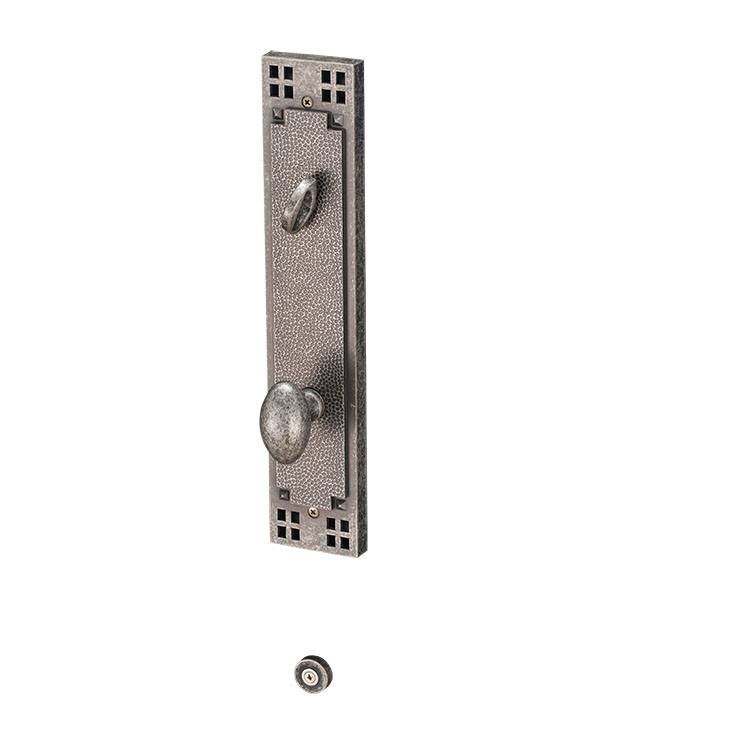

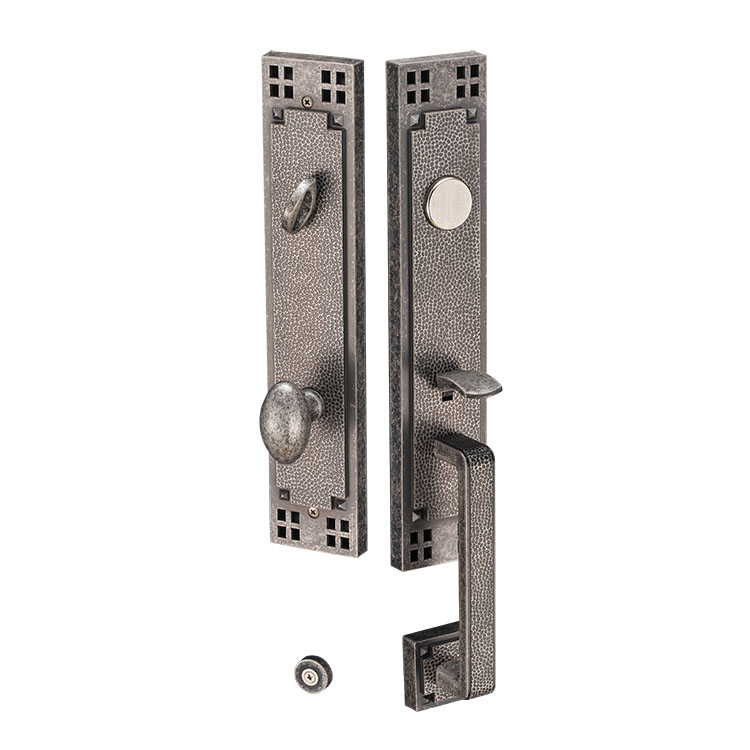

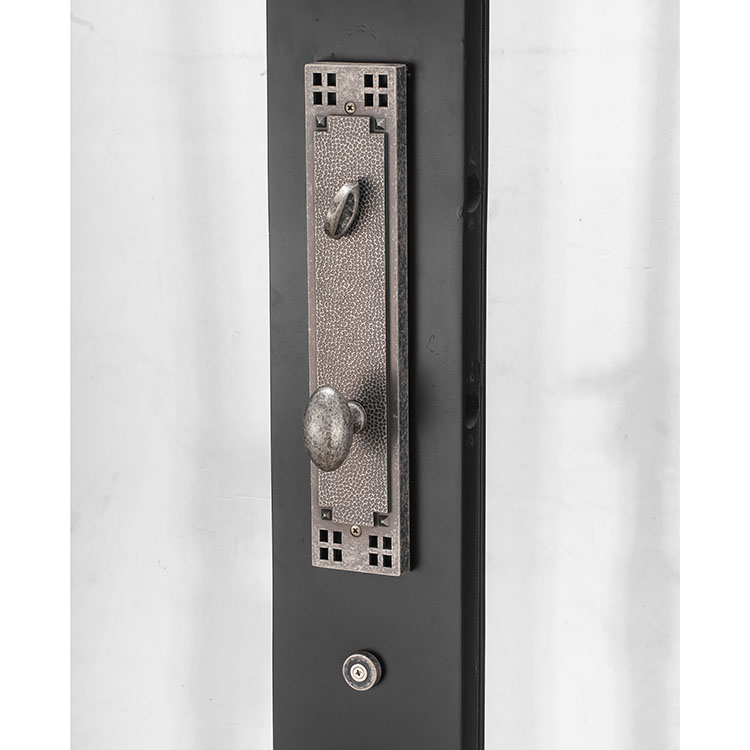

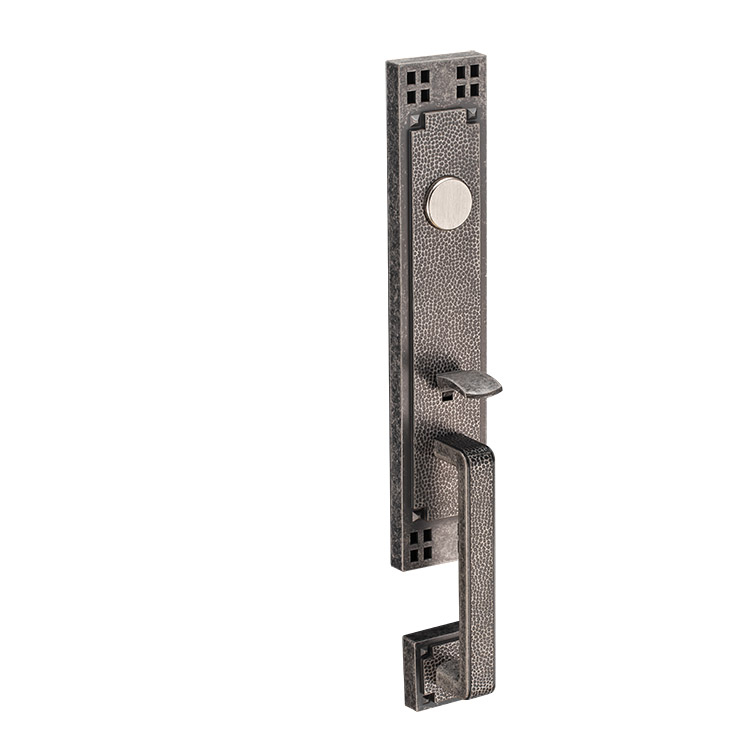

Product picture:

keyless entry locksexternal door locksentrance door locksbest locksentry locksetlockable door handlesexterior door hardware

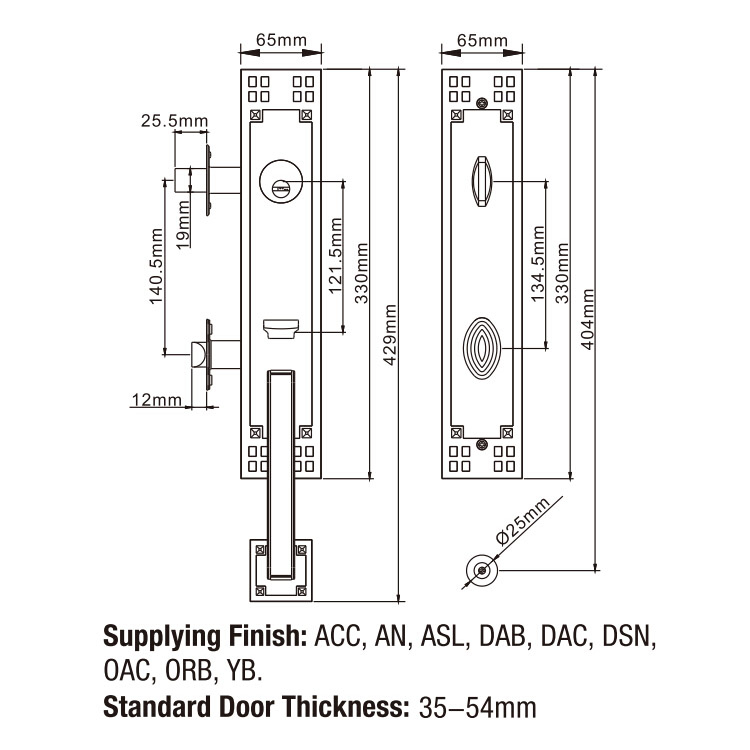

Size Picture:

passage lockset

Main Specifications:

  • Apply to all kinds of wooden doors and metal doors.

  • Tubular type.

  • Distingulished entrance trim designs with rich styles,finish selections and levers of configurability.

  • Heavy-duty,10 years mechanical warranty under correct installation and normal usage.

  • The 3rd generation tubular mechanism with anti-saw function.

  • The 3rd generation high-tech cylinder with secure with secure keyway and construction key function .

  • Easily reversible for left and right opening doors.

  • Easy installation ,instruction manual included.


Assembly illustration:

screen door locks


The 3rd Generation Tubular Latch And Deadbolt:

Deadbolt

  • Solid Brass for bolt tongue.

  • Reinforced with a big & hardened steel insert,anti-saw,higher security.

  • High quality steel for casing ,percise mechanism inside ,strong and stable.

  • Solid stainless steel for forend and strike plate.

  • Backset:60mm(2-3/8")-70mm(2-3/4")adjustable.

outside door locks

Latch

  • Solid brass for latch tongue.

  • High quality steel for casing , precise mechanism inside,strong and stable.

  • Solid stainless steel for forend and strike plate.

  • Backset:Standard:60mm(2-3/8")   ,Customized:70mm(2-3/4")



front door locks and handles

Driving Rack For Latch

High quality steel turning rack & gear driving mechanism inside,enable the latch to work smoothly.

sliding patio door locks

The 3rd Generation High-tech Cylinder

  • High-tech solid brass cylinder(Brass for housing,core/plug.pins and nut).

  • Machined by precise CNC(Computer Numeric Control) equipments according  to the most strict QA standard.

  • Keyway:Double-Row-Pin technology,10 pins,pin-combinations are much more than internation key function available:Each cylinder with 5 pcs OWNER keys + 1 pc CONSTRUCTION keys,all keys are made by solid brass ,thickness 2.5mm.

  • Hardened process for tail-piece,stronger and more durable.

front door latch

The structure of  6 Series cylinder

automatic door lock


Double - row - pin With Construction Key Function:

main door handles


Plastic Box For Owner Keys:

storm door locks


Supplying keyway:

double lock door



Show room:

door handle with lock and key


Product Process:



back door locks

Multiple Cycle Test For Complete Set(Max.test 16 sets at the same time)

door lock hardware
