DJSD601
ORIENTAL
Welcome a trial order!
Contact us at any time
| Model No.: | DJSD601 |
| Application: | All kinds of Wooden and Metal sliding doors. |
| Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
| Mortise Lock: | Manufactured according to Italian quality standard, with double compass bolt made by solid brass, high quality imported EGI steel for casing, solid stainless steel or brass for forend and strike plate. Backset of Mortise Lock Case: 45mm. |
| Cylinder: | Made by solid brass, high class computer keyway, each set with 5 brass keys. |
| Supplying function: | Entrance, Bathroom, Flush Handle. |
| Door thickness: | Standard 30-45mm |
| Supplying finish: | AC (US11) - Antique Copper |
ACC - Antique Coffee Copper | |
| SG - Satin True Gold | |
| ASL - Antique Silver | |
| DAB – Dim Antique Brass | |
| Package: | High quality color box. |
| Carton: | 12 sets/carton |

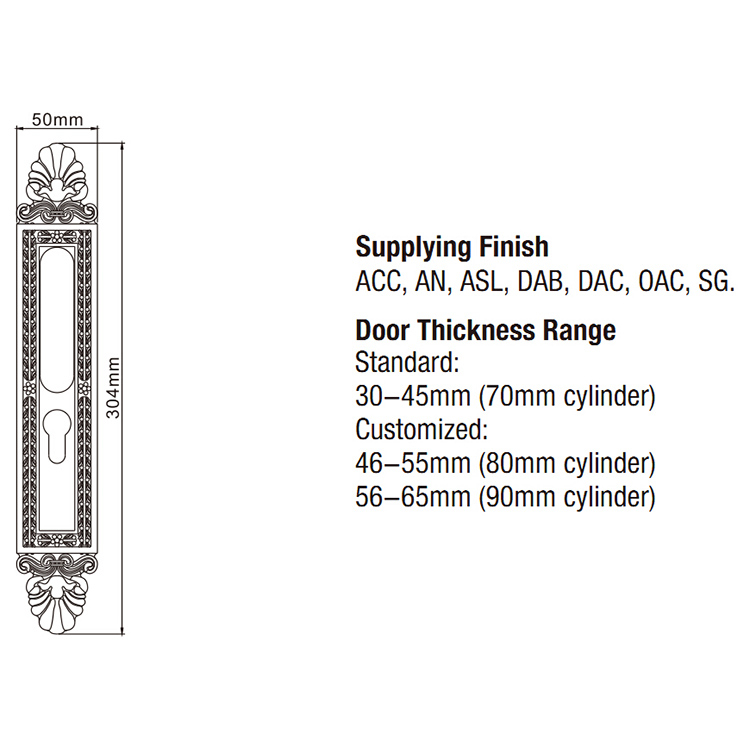

Size Picture:
Main Specifications:
Apply to all kinds of luxury wooden sliding doors and metal sliding doors.
Mortise type.
10 years mechanism warranty under correct installation and normal usage.
Artistic design , high added-value.
Abundant choices for trim and plating.
Double compass bolt lock case.
Assembly Illustration：
Mortise Lock Case：
High quality imported EGI（electric galvanized）steel sheet for casing ,thickness 1.5mm.firm and strong.
Solid brass for bolts.
Double compass bolt,precise mechanism inside,distinctive ,stable,strong and high security .
Solid stainless steel or brass for forend (thickness 3.0mm) and strike plate (thickness 3.0mm).
Cylinder:
Single Cylinder(Key to Knob)
Double Cylinder(Key to Key)
Supplying Size:60mm,70mm,80mm,90mm.100mm or to order
High quality solid brass cylinder (Brass housing,plugs and pins).
High class computer keyway technology ,7 pins,processed with high precise CNC machines,pin-combination is much more than international standard ,high security.
Each set with 5 pcs keys, all keys are made by solid brass,thickness 2.5mm.
Supplying Keyway:
Standard Customized Keyway
